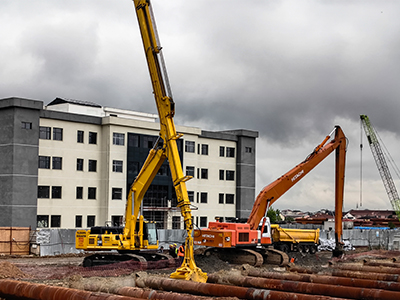

Delivering exceptional reach, control and productivity the ability to perform in confined spaces such as urban foundations, tunneling and deep pit projects make it the ideal choice in simplifying complex tasks.

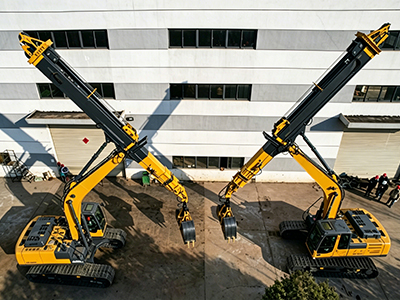

Modular design is adopted to efficiently match with the chassis of the different brands of excavator resulting in the multi-functional usage of the excavator to effectively lower the cost of investment.

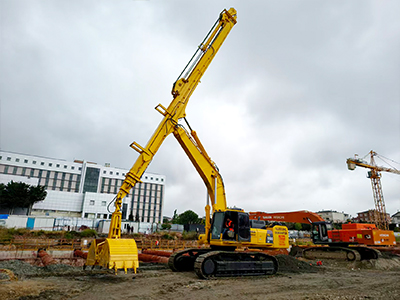

Easy maintenance, low cost and high yield; Reliable telescopic structure of steel wire rope, largely improving the wire rope service life.
Widely used in the deep foundation pit of the bridge, Metro, and Metro Covered excavation, dredging excavation works.
| MODEL | NAME | Telescopic Arm Excavator | |
| Feeding equipment | Recommended excavator capacity(t) | ≥15T ≥23T ≥36T ≥47T 55T | |
| Excavator arm | Max. vertical digging depth (mm) | 15200 22490 27180 35000 35000 | |
| Max. vertical digging radius (mm) | 6430 7445 8530 8820 9080 | ||
| Complete machine | Machine weight(t) | 3.6T 4.6T 5.6T 8.2T 8.6T（Telescopic arm weight） | |
| processing capacity(t/h) | |||
| Transportation dimension (length width height,mm) | |||
| Total power(kw) |
Description：
The body is designed and fabricated using high strength steel plates to increase the life span by more than 50%.
The use of wire rope specially designed for construction machinery, coupled with the well-designed pulley layout to reduce the wear and tear of the wire rope to improve its service life.
Mature and reliable touchdown protection technology is adopted to prevent the wire rope from twisting thereby to improve the service life of the wire rope and to reduce the rate of failure.
